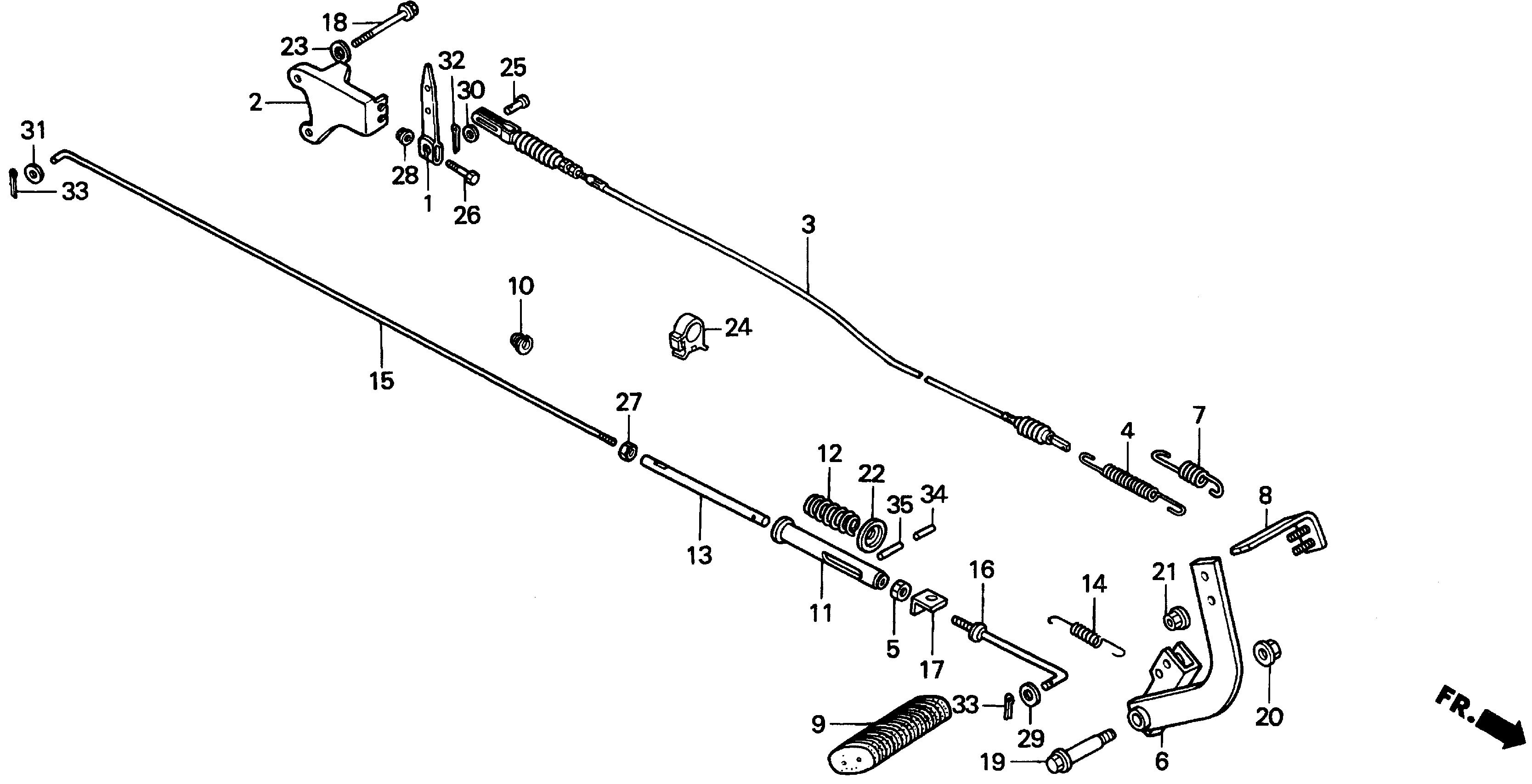

Riding Mower H H3013 H3013H HSA MZAH-6000001-9999999 FOOT BRAKE PEDAL - Smith Farm & Garden

WARNING: California Prop 65 Information

Ref No

Part Number

Description

Serial Range

Qty

Price

Ref No
5

Part Number
45423-KA4-700

Description
NUT, HEX. (6MM) (LEFT HAND THREAD)

Serial Range
1000001 - 9999999

Qty

Price
$2.18

Ref No
6

Part Number
46510-763-D00

Description
PEDAL, FOOT BRAKE

Serial Range
1000001 - 9999999

Qty

Price
$74.05

Ref No
7

Part Number
46514-763-A00

Description
SPRING, BRAKE PEDAL

Serial Range
1000001 - 9999999

Qty

Price
$6.23

Ref No
8

Part Number
46515-763-D01

Description
BRACKET, BRAKE PEDAL

Serial Range
1000001 - 9999999

Qty

Price
$36.81

Ref No
9

Part Number
46545-751-000

Description
RUBBER, BRAKE PEDAL

Serial Range
1000001 - 9999999

Qty

Price
$22.15

Ref No
10

Part Number
46547-751-000

Description
BUSH, BRAKE ROD

Serial Range
1000001 - 9999999

Qty

Price
$6.05

Ref No
11

Part Number
47241-763-A00

Description
PIPE, BRAKE

Serial Range
1000001 - 9999999

Qty

Price
$58.65

Ref No
12

Part Number
47251-763-D01

Description
SPRING, FOOT BRAKE LOAD SETTING

Serial Range
1000001 - 9999999

Qty

Price
$15.27

Ref No
13

Part Number
47253-763-A00

Description
SHAFT, SPRING SET

Serial Range
1000001 - 9999999

Qty

Price
$30.25

Ref No
14

Part Number
47255-751-000

Description
SPRING, BRAKE DAMPER

Serial Range
1000001 - 9999999

Qty

Price
$7.85

Ref No
15

Part Number
47261-763-D00

Description
ROD A, FOOT BRAKE

Serial Range
1000001 - 9999999

Ref No
16

Part Number
47265-763-A00

Description
ROD B, FOOT BRAKE

Serial Range
1000001 - 9999999

Qty

Price
$7.02

Ref No
17

Part Number
47269-763-A00

Description
PLATE, DAMPER SPRING SETTING

Serial Range
1000001 - 9999999

Qty

Price
$4.20

Ref No
19

Part Number
90104-751-000

Description
BOLT, P.T.O. CLUTCH LEVER

Serial Range
1000001 - 9999999

Qty

Price
$11.90

Ref No
20

Part Number
90118-961-000

Description
NUT, SELF-LOCK (8MM)

Serial Range
1000001 - 9999999

Qty

Price
$7.63

Ref No
21

Part Number
90208-425-870

Description
NUT, FLANGE (8MM) (NOT AVAILABLE)

Serial Range
1000001 - 9999999

Ref No
22

Part Number
90526-751-700

Description
WASHER, BRAKE SPRING SETTING

Serial Range
1000001 - 9999999

Qty

Price
$8.49

Ref No
27

Part Number
94001-08000-0S

Description
NUT, HEX. (8MM)

Serial Range
1000001 - 9999999

Qty

Price
$1.76

Ref No
29

Part Number
94101-05800

Description
WASHER, PLAIN (5MM)

Serial Range
1000001 - 9999999

Qty

Price
$1.32

Ref No
31

Part Number
94101-08800

Description
WASHER, PLAIN (8MM)

Serial Range
1000001 - 9999999

Qty

Price
$2.60

Ref No
33

Part Number
94201-20150

Description
PIN, SPLIT (2.0X15)

Serial Range
1000001 - 9999999

Qty

Price
$1.39

Ref No
34

Part Number
94305-30282

Description
PIN, SPRING (3X28)

Serial Range
1000001 - 9999999

Qty

Price
$1.98

Ref No
35

Part Number
94305-50282

Description
PIN, SPRING (5X28)

Serial Range
1000001 - 9999999

Qty

Price
$2.53
